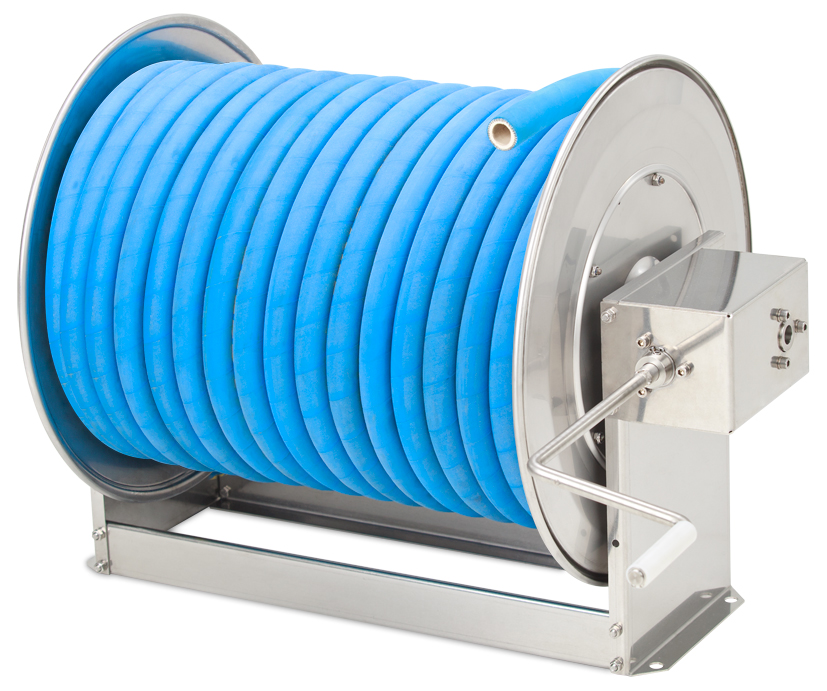

Manual hose reel type STKi2W 60/24

Manual hose reel type STKi2W 60/19 Description:
The angled gear is the special element of the hose reel STKi2W. Its construction and technology corresponds to tested type STKi2.

A removeable manual crank handle, front operated, allows the operation in tight spaces. The transmission ratio 2:1 faciliates rewinding heavy hoses.

Materials:
postbulletsStainless steel AISI 304 (application in wet areas)

Technical data:

Type STKi2W 60/24
stainless steel AISI 304
Item number: V10720023W
Hose length (max): max. 52m (od 35mm)
Hose: not included but available upon request
Nominal width: 24mm (1")
Inlet (swivel): 1" inner thread
Outlet (pipe bend): 1" inner thread
Operating pressure: max. 100bar
Temperature: 1-100°C (at extra charge up to 180°C)
Weight: 17,2kg (unpacked)
Dimensions: see downloads on the left
Suitable substances: water / cleaning supplies / air / oil / grease / etc.
Angled swivel: WDTH24/Brass(B1070003602)
Angled swivel WDTH18/Ms
Swivel WDTH24/Brass
Brake block to stop the hose reel
Brake handle
Crank handle with free turning polyamide grip
Crank handle
