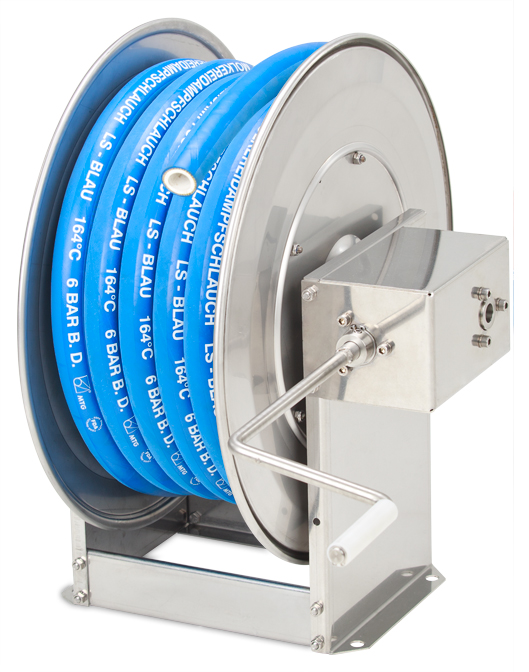

Manual hose reel type STKi2W 20/12

Manual hose reel type STKi2W 20/19 Description:
The angled gear is the special element of the hose reel STKi2W. Its construction and technology corresponds to tested type STKi2.

A removeable manual crank handle, front operated, allows the operation in tight spaces. The transmission ratio 2:1 faciliates rewinding heavy hoses.

Materials:
postbulletsStainless steel AISI 304 (application in wet areas)

Technical Data:

Type STKi2W 20/12
stainless steel AISI 304
Item number: V10720010W
Hose length (max): max. 35m (od 22mm)
Hose: not included but available upon request
Nominal width: 12mm (1/2")
Inlet (swivel): 1/2" inner thread
Outlet (pipe bend): 1/2" inner thread
Operating pressure: max. 200bar (300bar)
Temperature: 1-100°C (at extra charge up to 180°C)
Weight: 10,5kg (unpacked)
Dimensions: see downloads on the left
Suitable substances: water / cleaning supplies / air / oil / grease / etc.
Angled swivel: WDTH12/Al(B1070003504)
Angled swivel WDTH12/Al
Swivel WDTH12/Al
Brake block to stop the hose reel
Brake handle
Crank handle with free turning polyamide grip
Crank handle
