Automatic hose reel type ST20/19

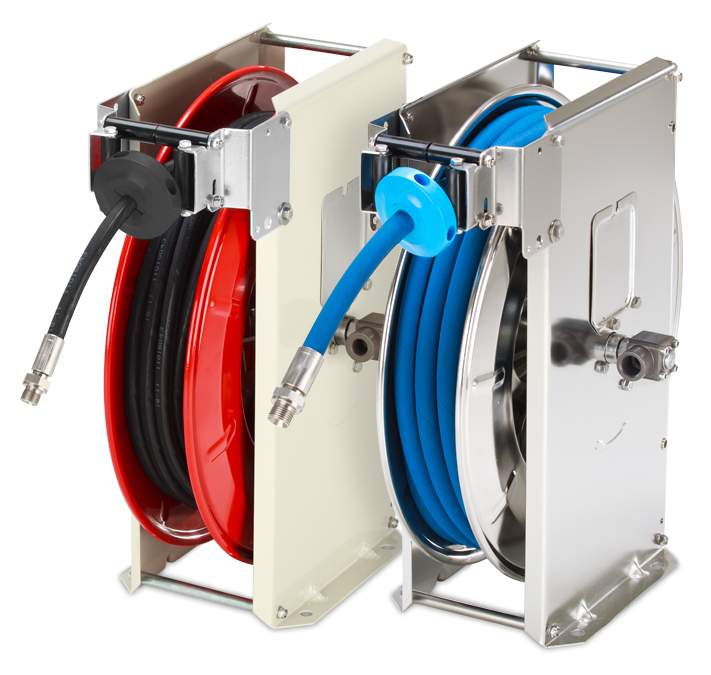

Automatic hose reels model ST - powder coated on the left - stainless steel on the right Description:
The type ST is a highly robust and reliable hose reel with automatic spring rewind.

The standard angled swivels are provided with stainless steel axles. The housing consists of chemical nickel plated brass but can be also supplied in stainless steel AISI 304 and 316 upon request.

A hose is not included in the delivery, but could be requested.

Technical Data:

Type ST20/19
powder-coated
ST20/19e
stainless steel
ST20/19ep
electro-polished
Item number: V10710019 V10710020 V10710021
Hose length (max): max. 10m (od 25mm)
Hose: not included but available on request
Nominal width: 19mm (3/4")
Inlet (swivel): 3/4" inner thread
Outlet (pipe bend): 3/4" inner thread
Operating pressure: max. 200bar
Temperature: 1-100°C (at extra charge up to 180°C)*
Weight: 17kg (unpacked)
Dimensions: see downloads on the left
Suitable substances: water / cleaning supplies / air / oil / grease / etc.*
Angled swivel: WDTH19/Brass B10700036 (AISI304 at extra charge)**
Angled swivel WDTH19/Ms
Swivel WDTH19/Brass
Locking screw for clamping of the hose drum
Locking screw
The inflow window can be mounted in three different positions.
Hose guide window

* When using chemicals or high temperatures are needed, sealings of Viton must be installed. The item number for additional costs of 3/4" hose reels is M10710012.

** A stainless steel angled swivel with a nominal width of 3/4" (19 mm) is available for additional costs with the item number MP10700035012.
