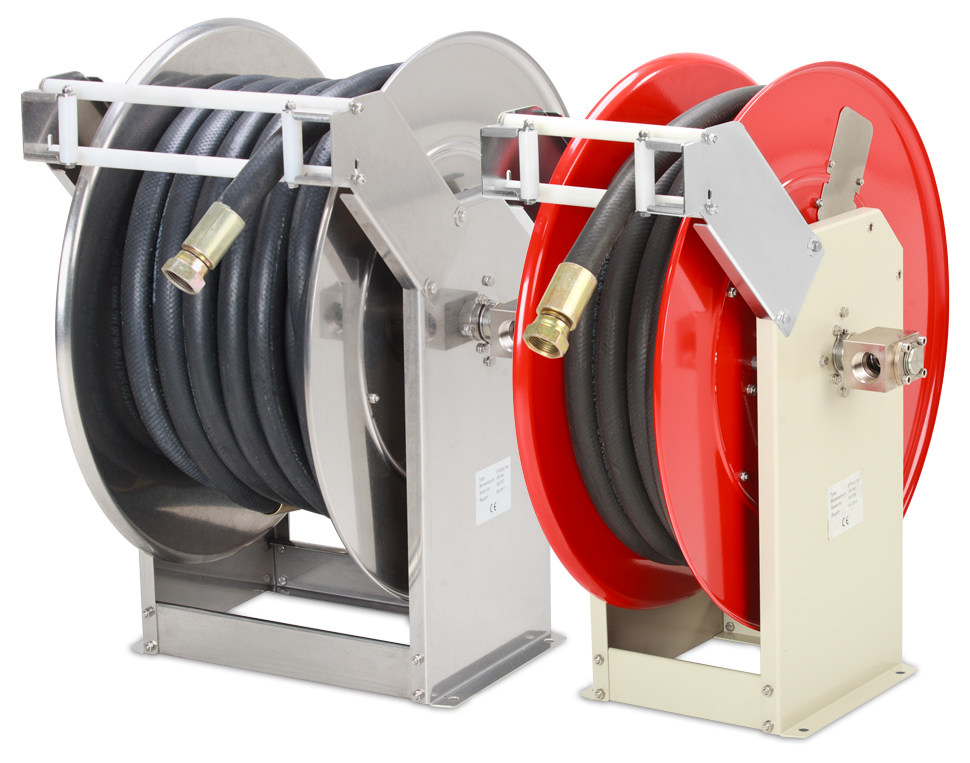

Automatic 1 inch hose reel type STG (high flow rate)

Automatical 1 Description:
The automatic 1" hose reel type STG represents all our expert knowledge and therefore an entirely developed technology.

It was especially designed for high flow rates. The base frame is made of warp resistant profiles. The drum consists of two highly moulded discs and a closed hub.

Materials:
postbulletsSteel, powder-coated, RAL7032 & RAL3000 (application in dry areas)

postbulletsStainless steel (application in wet areas)

Reel bearing:
Maintenance free, chemical resistant plastic slide bearings, resistant to wet conditions and dirt.

Main spring:
High-quality texture-steeltape-steel with high durability.

Tension release:
The hose can be stopped at max. 8 positions per each rotation. Shortly pulling the hose releases the locking device.

Angled swivel:
The standard angled swivels are provided with stainless steel axles. The housing consists of chemical nickel-plated brass. All types can be supplied in stainless steel AISI 304 upon request.

Hose guide window:
According to the pulling direction of the hose, the hose guide window can be mounted in two positions. Delivery standard is position I.

Pipe bend:
A connecting pipe that is welded with the axle guarantees an easy hose mounting, without bending the hose extremely.

Mounting possibilities:
The wall swivel bracktes SKW40/1 and SKW 40/2 can also be used for the STG models.

Application areas:
Water, water with chemical cleaning supplies, air, oil and grease. The maximum permitted operating temperature is regularly 100°C. If required, the hose reels can be modified to a temperature of 180°C for an extra charge.

Angled swivel WDTH24/Brass
Swivel WDTH24/Brass
Locking screw for clamping of the hose drum
Locking screw
Tube bend water outlet 1
Pipe bend 1"
