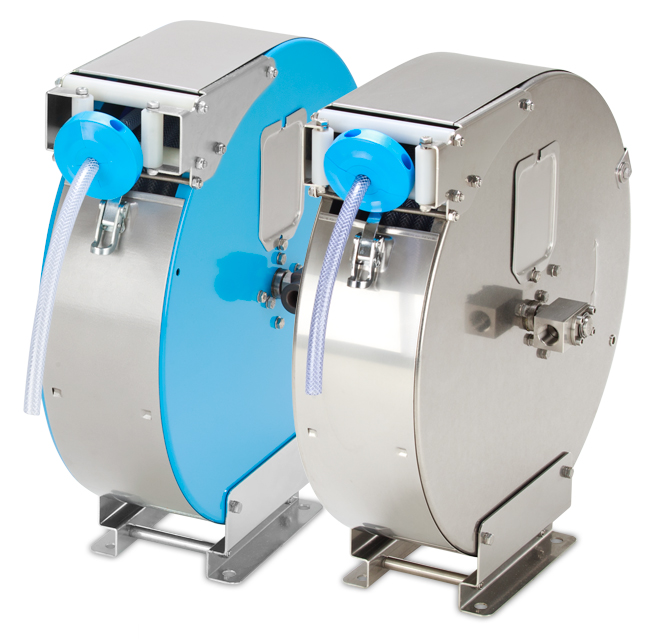

Automatic hose reel type PST with spring rewind (closed housing)

Automatical hose reel model PST with spring return closed version Description:
This is an highly robust, closed hose reel with automatic spring return for dust areas.

The quick fastener permits an easy opening and closing of the housing for cleaning the hose. You can save a lot of time.

Because of the round shape the hose reel without cover is especially suitable for kitchens.

Materials:
postbulletsSteel, powder-coated, RAL9007 & RAL5002 (application in dry areas)

postbulletsStainless steel (application in wet areas)

Reel bearing:
Maintenance free, chemical resistant plastic slide bearings, resistant to wet conditions and dirt.

Main spring:
High-quality texture-steeltape-steel with high durability.

Tension release:
The hose can be stopped at max. 8 positions per each rotation. Shortly pulling the hose releases the locking device.

Angled swivel:
The standard angled swivels are provided with stainless steel axles. The housing consists of ebonite hard anodized aluminium die casting alloys. All types can be supplied in stainless steel AISI 304 upon request.

Hose guide window:
It is made of solid polyamide-rolls and is designed for a long operating life.

Mounting possibilities :
The base can be mounted in two positions. The page "mounting possibilities" illustrates possibilities with and without brackets.

Application areas:
Water, water with chemical cleaning supplies, air, oil and grease. The maximum permitted operating temperature is regularly 100°C. If required, the hose reels can be modified to a temperature of 180°C for an extra charge.

Angled swivel WDTH10/Al
Swivel WDTH10/Al
Locking screw to mount the hose
Locking screw
Quick fastener to open the housing
Quick fastener
