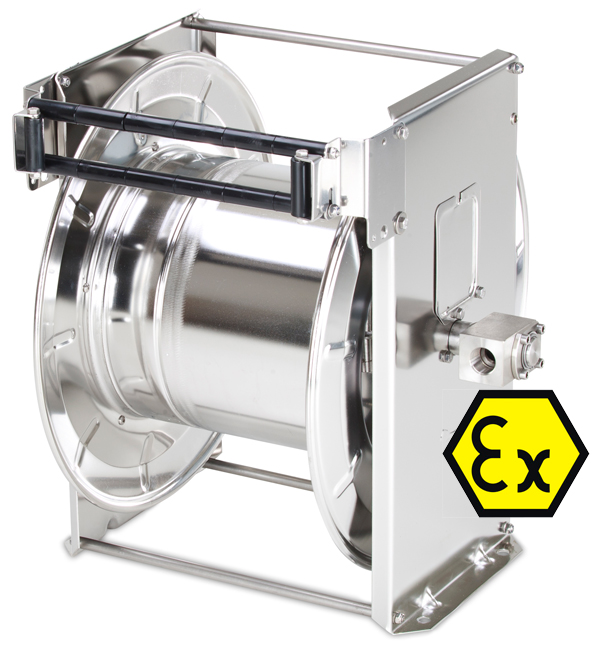

Automatic Atex hose reel type ST40/19/2 EX
 |
Description: These highly robust and reliable Atex hose reels of the type ST EX are provided with an automatic spring rewind and can be used in every explosive area above ground, not applicable to underground mining. The angled swivels are delivered in stainless steel AISI 304. A hose is not included in the delivery, but could be requested. |
Technical Data:
| Type | ST40/19/2e EX stainless steel |
ST40/19/2ep EX electro-polished |
|
| Item number: | V10710092 | V10710093 | |
| Hose length (max): | max. 36m (od 25mm) | ||
| Hose: | not included but available on request | ||
| Nominal width: | 19mm (3/4") | ||
| Inlet (swivel): | 3/4" inner thread | ||
| Outlet (pipe bend): | 3/4" inner thread | ||
| Operating pressure: | max. 200bar | ||
| Temperature: | 1-100°C (at extra charge up to 180°C)* |
||
| Weight: | 26,5kg (unpacked) | ||
| Dimensions: | see downloads on the left | ||
| Suitable substances: | breathing air / water / cleaning supplies / oil / grease * | ||
| Angled swivel: | WDTH19/304 (B1070003601) | ||
 Swivel WDTH19/304 |
 Locking screw |
 Hose guide window |
* When using chemicals or high temperatures are needed, sealings of Viton must be installed. The item number for additional costs of 3/4" hose reels is M10710012.
