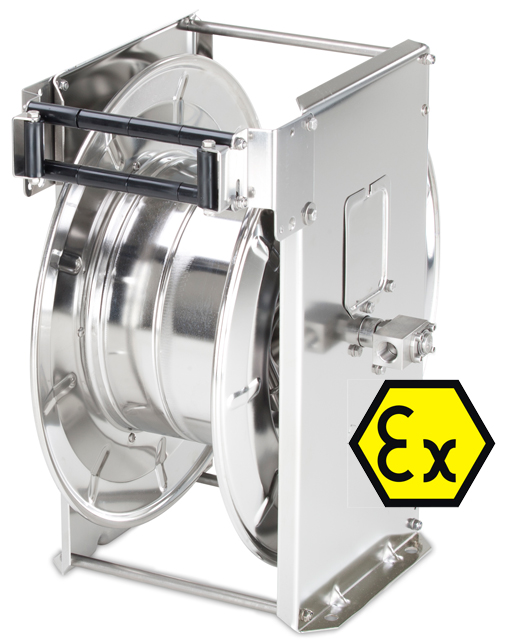

Automatic Atex hose reel type ST40/12/2 EX

Atex automatic hose reel type ST40/12/2 EX Description:
These highly robust and reliable Atex hose reels of the type ST EX are provided with an automatic spring rewind and can be used in every explosive area above ground, not applicable to underground mining.

The angled swivels are delivered in stainless steel AISI 304.

A hose is not included in the delivery, but could be requested.

Technical Data:

Type ST40/12/2e EX
stainless steel
ST40/12/2ep EX
electro-polished
Item number: V10710088 V10710089
Hose length (max): max. 37m (od 20mm)
Hose: not included but available on request
Nominal width: 12mm (1/2")
Inlet (swivel): 1/2" inner thread
Outlet (pipe bend): 1/2" inner thread
Operating pressure: max. 300bar
Temperature: 1-100°C (at extra charge up to 180°C)*
Weight: 25kg (unpacked)
Dimensions: see downloads on the left
Suitable substances: breathing air / water / cleaning supplies / oil / grease *
Angled swivel: WDTH12/304 (B10700035011)
Angled swivel WDTH10/304
Swivel WDTH12/304
Locking screw for clamping of the hose drum
Locking screw
The inflow window can be mounted in three different positions
Hose guide window

* When using chemicals or high temperatures are needed, sealings of Viton must be installed. The item number for additional costs of 3/8" and 1/2" hose reels is M1071001201. For EPDM you have to order the following item number M1071001202.
