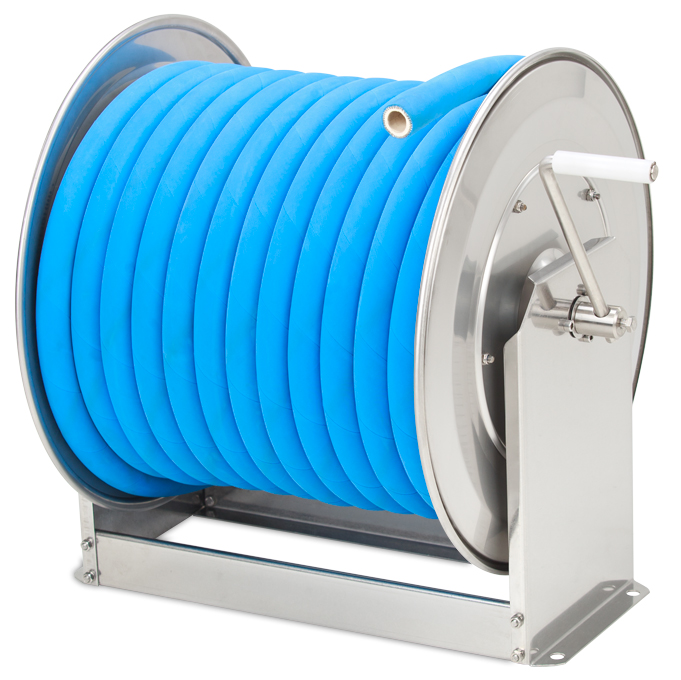

Manual hose reel type STKi2 50/12

Manueller Schlauchaufroller Type STKi2 40/19 Description:
The manual hose reel type STKi2 with closed hub is suitable for all industrial and vehicle applications.

A removeable manual crank handle with a rotary polyamide roll is used to rewind the hose.

postbulletsStainless steel AISI 304
(application in wet areas)

postbulletsStainless steel AISI 316
(application in aggressive areas)**

Technical data:

Type STKi2 50/12
stainless steel AISI 304
STKi2 50/12
stainless steel AISI 316
Item number: V10720018 V10720018-1
Hose length (max): max. 85m (AD 22mm)
Hose: not included but available on request
Nominal width: 12mm (1/2")
Inlet (swivel): 1/2" inner thread
Outlet (pipe bend): 1/2" inner thread
Operating pressure: max. 200bar (at extra charge up to 300bar)*
Temperature: 1-100°C (at extra charge up to 180°C)***
Weight: 14,6kg (unpacked)
Dimensions: see downloads on the left
Suitable substances: water / cleaning supplies / air / oil / grease / etc.***
Angled swivel: WDTH12/Al(B1070003504)*
Angled swivel WDTH12/Al
Swivel WDTH12/Al
Crank handle with free turning polyamide grip
Crank handle
Brake block to stop the hose reel
Brake handle

* A stainless steel angled swivel with a nominal width of 1/2" (12 mm) can be used for the application of hose reels up to 300bar. The additional cost item number is MP10700035011.

** Especially in aggressive areas like offshore (harbours, ships, drilling rigs, etc) or in chlorous areas like swimming pools, drinking water systems and chemical industry we strongly recommend the use of the high quality stainless steel AISI 316 (V4A).

*** When using chemicals or high temperatures are needed, sealings of Viton must be installed. The item number for additional costs of 3/8" and 1/2" hose reels is M1071001201. For EPDM you have to order the following item number M1071001202.
