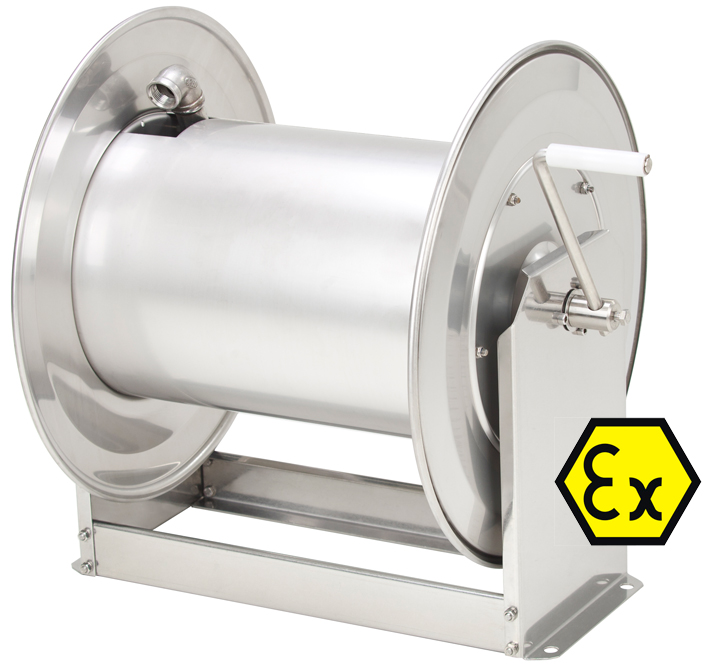

Manual atex hose reel type STKi2 40/19 EX

Manual atex hose reel type STKi2 40/12 EX Description:
The manual Atex hose reel STKi2 Ex can be used in every explosive area above ground, not applicable to underground mining.

The angled swivels are delivered in stainless steel.

Materials:
postbulletsStainless steel AISI 304
(application in wet areas)

postbulletsStainless steel AISI 316
(application in aggressive areas)**

Technical data:

Type STKi2 40/19 EX
stainless steel AISI 304
STKi2 40/19 EX
stainless steel AISI 316
Item number: V10720044 V10720044-1
Hose length (max): max. 40m (od 28mm)
Hose: not included but available on request
Nominal width: 19mm (3/4")
Inlet (swivel): 3/4" inner thread
Outlet (pipe bend): 3/4" inner thread
Operating pressure: max. 200bar
Temperature: 1-100°C (at extra charge up to 180°C)*
Weight: 14,7kg (unpacked)
Dimensions: see downloads on the left
Suitable substances: breathing air / water / cleaning supplies / oil / grease *
Angled swivel: WDTH19/304(B1070003601)
WDTH19/316(B1070003605)
Angled swivel WDTH12/Va
Swivel WDTH19/304
Crank handle with free turning polyamide grip
Crank handle
Brake block to stop the hose reel
Brake handle

* When using chemicals or high temperatures are needed, sealings of Viton must be installed. The item number for additional costs of 3/4" and 1" hose reels is M10710012.

** Especially in aggressive areas like offshore (harbours, ships, drilling rigs, etc) or in chlorous areas like swimming pools, drinking water systems and chemical industry we strongly recommend the use of the high quality stainless steel AISI 316 (V4A).
