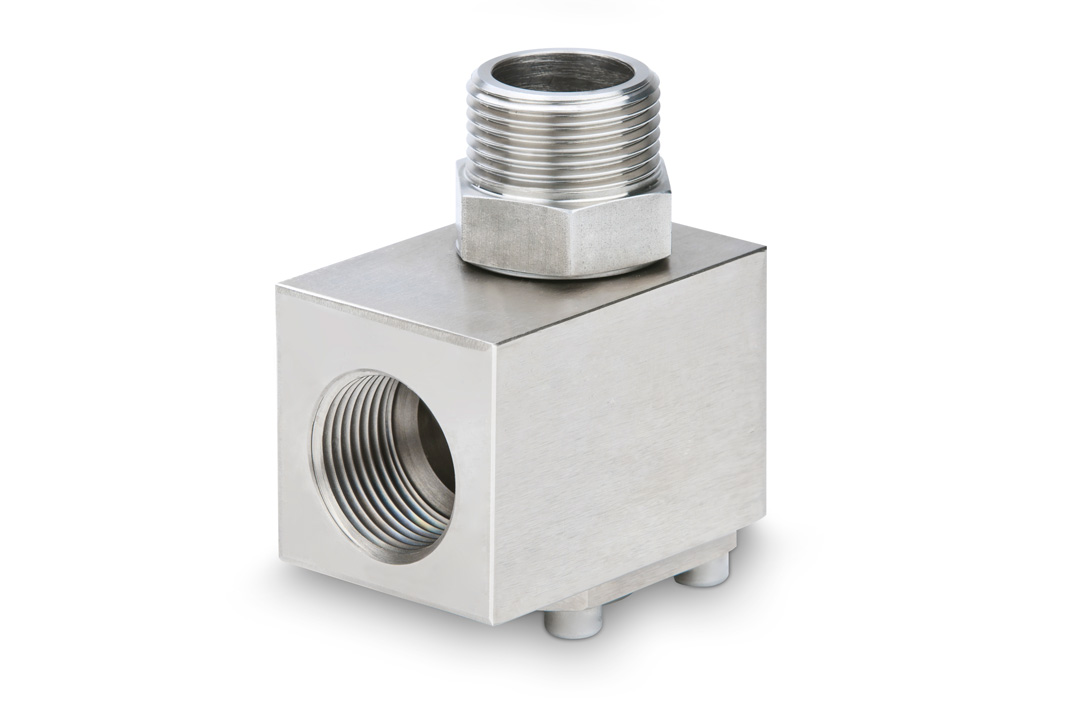

Angled swivel WDTH24 - 1 Inch
 |
Description: Angled swivel for high flow rates and for pressures up to 200bar. Suitable for the hose reels with a "24" in the type description (i.e. STKi2 40/24). |
Technical data:
| Type | WDTH24/Br |
WDTH24/304 | WDTH24/316 |
| Item number: | B1070003602 | B1070003603 | B1070003606 |
| Nominal width: | 24mm (1") | ||
| Inlet (housing): | 1" inner thread | ||
| Outlet (axle): | 1" outer thread | ||
| Operating pressure: | max. 200bar | ||
| Temperature: | 1-100°C (at extra charge up to 180°C) |
||
| Suitable substances: | water / cleaning substances / air /oil / greases / etc. | ||
| Material axle: | stainless steel 304 |
stainless steel 304 | stainless steel 316 |
| Material housing: | nickelplated brass | stainless steel 304 | stainless steel 316 |
| Material sealing: | PTFE/EPDM* |
||
| Weight: | 1,3kg | 1,3kg |
1,3kg |
*For the use of chemicals the sealing materials Viton or higher quality EPDM are available at extra charge.
