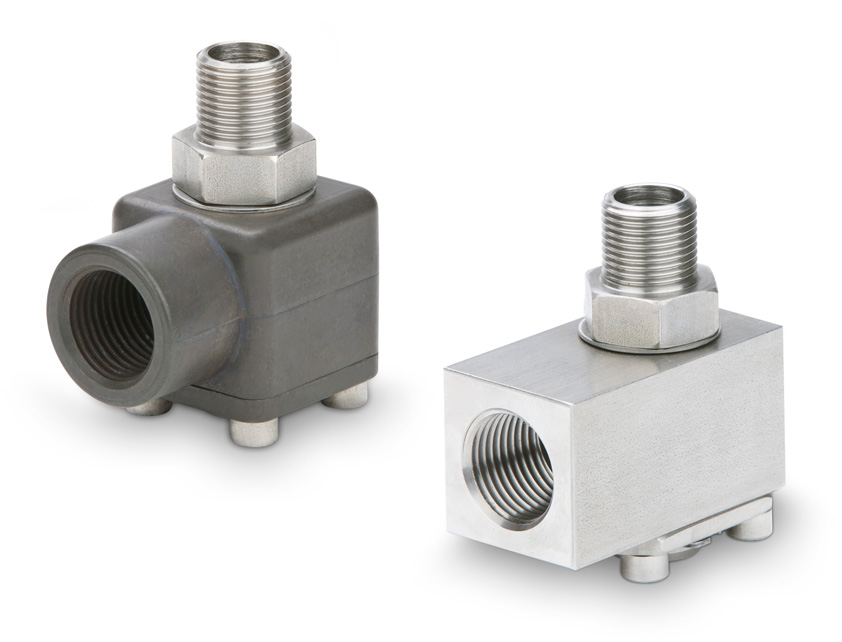

Angled swivel WDTH12 - 1/2 Inch
 |
Description: Angled swivel with a nominal width of 12 mm for the application in the cleaning area. Suitable for hose reels with a "12" in the type description (i.e. ST40/12/2) |
Technical data:
| Type | WDTH12/Al |
WDTH12/304 | WDTH12/316 |
| Item number: |
B1070003504 | B10700035011 | B10700035006 |
| Nominal width: | 12mm (1/2") | ||
| Inlet (housing): | 1/2" inner thread | ||
| Outlet (axle): | 3/8" outer thread | ||
| Operating pressure: | max. 200bar | max. 300bar | max. 300bar |
| Temperature: | 1-100°C (at extra charge up to 180°C) |
||
| Suitable substances: | water / cleaning substances / air /oil / greases / etc. |
||
| Material axle: | stainless steel |
stainless steel 304 |
stainless steel 316 |
| Material housing: | aluminium |
stainless steel 304 |
stainless steel 316 |
| Material sealing: | PTFE/EPDM* | ||
| Weight: | 0,2kg | 0,4kg |
0,4kg |
*For the use of chemicals the sealing materials Viton or higher quality EPDM are available at extra charge.
