Seal kit
 |

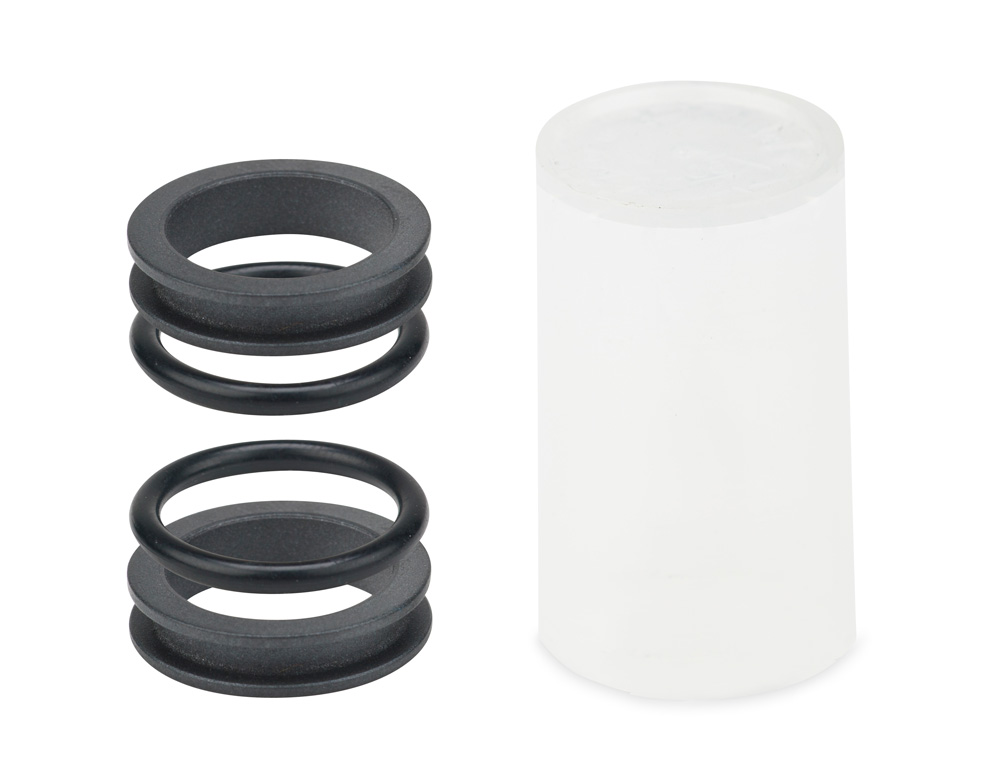

Description: Set of seals to repair a dripping angled swivel. Consisting of two slide rings, two o-rings and an assembly aid. |
Technical data:
| Standard version |
3/8" & 1/2" |
3/4" & 1" |
| Item number: | B10700037 | B10700040 |
| Temperature: | 1-100°C | 1-100°C |
| Suitable substances: | water / cleaning substances / air /oil / greases / etc. | |
| Material: |
PTFE/EPDM70 AP370 |
PTFE/EPDM70 AP370 |
| Suitable for swivel: |
WDTH5 WDTH10 WDTH12 |
WDTH19 WDTH24 |
| Special version for hot water and Diesel |
3/8" & 1/2" |
3/4" & 1" |
| Item number: | B10700037-VI | B10700040-VI |
| Temperature: | 1-180°C | 1-180°C |
| Suitable substances: | as above and Diesel |
|
| Material: |
PTFE/Viton 665 |
PTFE/Viton 665 |
| Suitable for swivel: | WDTH5 WDTH10 WDTH12 |
WDTH19 WDTH24 |
| Special version for chemistry |
3/8" & 1/2" |
3/4" & 1" |
| Item number: | B10700040 | B10700040-CH |
| Temperature: | 1-180°C | 1-180°C |
| Suitable substances: | chemistry like Acteon |
|
| Material: |
PTFE/EPDM70 AP540 |
PTFE/EPDM70 AP540 |
| Suitable for swivel: | WDTH5 WDTH10 WDTH12 |
WDTH19 WDTH24 |
