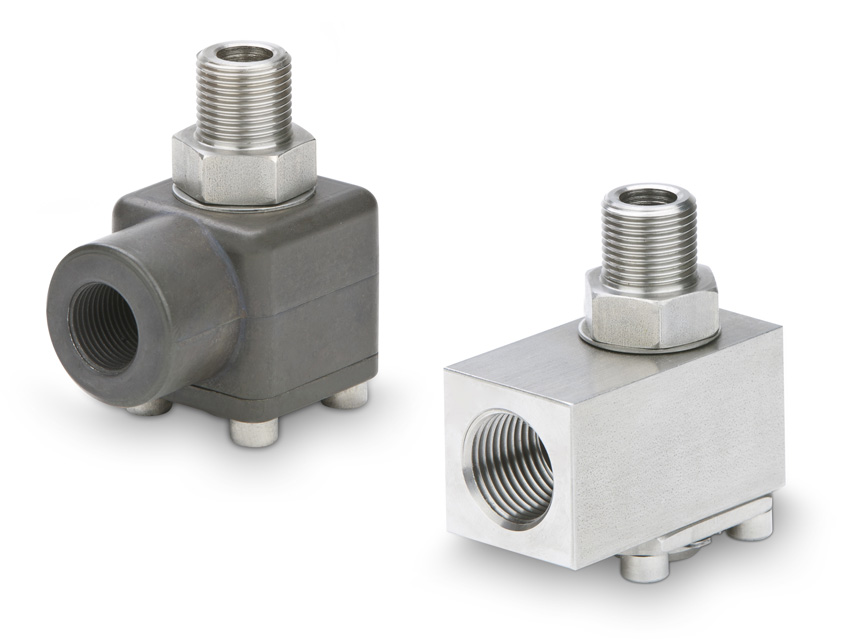

Angled swivel WDTH10 - 3/8 inch
 |
Description: Proven standard angled swivel, tried and tested, for the application up to 300bar (stainless steel 400bar). Suitable for the hose reels with a "10" in the type description (i.e. ST40/10) |
Technical data:
| Type | WDTH10/Al |
WDTH10/304 |
| Item number: | B10700035 | B1070003501 |
| Nominal width: | 10mm (3/8") | |
| Inlet (housing): | 3/8" inner thread | 1/2" inner thread |
| Outlet (axle): | 3/8" outer thread | |
| Operating pressure: | max. 300bar | max. 400bar |
| Temperature: | 1-100°C (at extra charge up to 180°C) |
|
| Suitable substances: | water / cleaning substances / air /oil / greases / etc. |
|
| Material axle: | stainless steel 304 |
stainless steel 304 |
| Material housing: | aluminium |
stainless steel 304 |
| Material sealing: | PTFE/EPDM* |
|
| Weight: | 0,2kg | 0,4kg |
*For the use of chemicals the sealing materials Viton or higher quality EPDM are available at extra charge.
