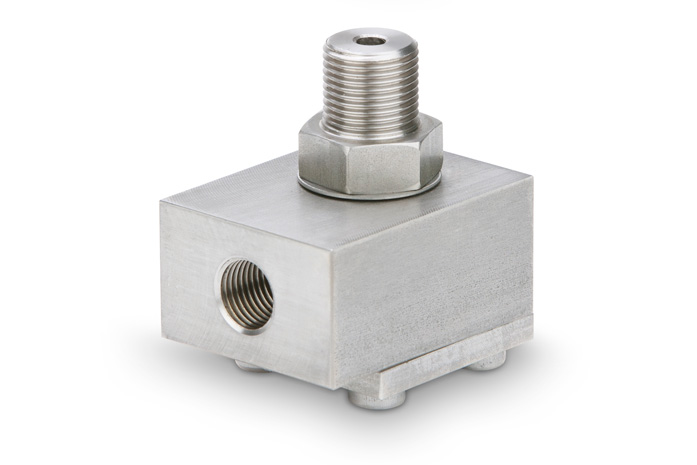

Angled swivel WDTH5 - 1/4 inch

Swivel WDTH5 Description:
Particularly suitable for limited water quantities and high pressure up to 600bar.

Suitable for hose reels with the nominal width of 10mm (In combination with a special pipe bow).

Technical data:

Type WDTH5/304
Item number: B1070003505
Nominal width: 5mm (1/4")
Inlet (housing): 1/4" inner thread
Outlet (axle): 3/8" outer thread
Operating pressure: max. 600bar
Temperature: 1-100°C (at extra charge up tp 180°C)
Suitable substances: water / cleaning substances / air /oil / greases / etc.
Material axle: stainless steel AISI 304
Material housing:
stainless steel AISI 304
Material sealing:
Weight: 0,2kg

*For the use of chemicals the sealing materials Viton or higher quality EPDM are available at extra charge.
