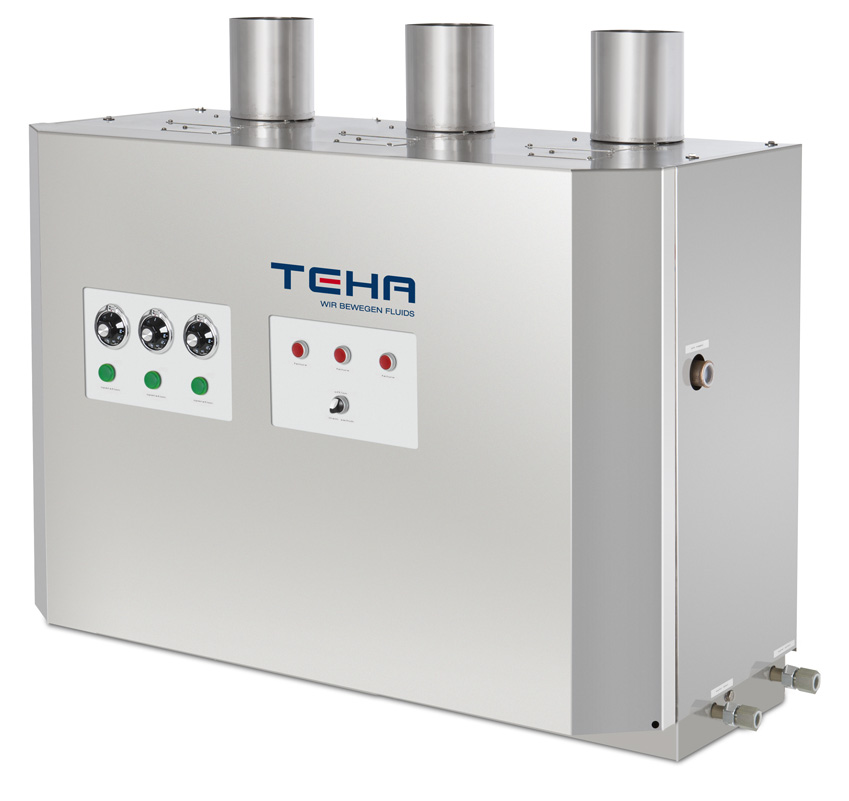

Stationary hotbox HBs3

Stationary hotbox HBs3 Description:
Our oil and gas heated stationary hot boxes offer a modular construction of the heating capacity to three boilers at maximum.

Water under high pressure will be heated up by this compact aggregate with integrated burner to the temperature which is adjusted on the thermostat.

These constructions are already piped completely.

Application area:
Especially for stationary use.

Technical Data HBs3:

Operating pressure: 200bar 300bar 500bar
Heating coil: 1/2"
3/8" 3/8"
Water/Filling content: 7,60 Ltr.
4,17 Ltr. 3,66 Ltr.
Weight: 271,0kg 271,0kg 271,0kg
Operating voltage: 230V 50HZ / 110V 50Hz / 12V DC
Power capacity: 240 KW
Operating temperature: max. 95°C
Oil flow (nozzle 1.75): 17,85 - 23,61 kg/h
Consumption of
natural gas (low):
21,00 - 30,00 m³/h
Consumption of
natural gas (high):
16,17 - 21,00 m³/h
Consumption of
butane and propane:
6,00 - 8,10 kg/h
Exhaust gas temperature: max. 180°C
Efficiency: >=91%
Exhaust gas losses: <=9%
Soot value (Bacherach): 0 - 1
Dimensions: 1275x615x930 mm


Equipment variants oil:

The basic version is without paneling, without outside air prime, without flue gas collector and without mounting elements (stand or telescope bracket).

Operating pressure: 200bar 300bar 500bar
230V, heating coil steel V10470016
V10470004
V10470007
230V, heating coil AISI 304 V10470019
V10470010
V10470013
12V, heating coil steel V11470016
V11470004
V11470007
12V, heating coil AISI 304 V11470019
V11470010
V11470013
110V equipment 3x M10430002


Equipment variants gas:

The basic version is without paneling, without outside air prime, without flue gas collector and without mounting elements (stand or telescope bracket).

Operating pressure: 200bar 300bar 500bar
230V, heating coil steel V10470016-G
V10470004-G
V10470007-G
230V, heating coil AISI 304 V10470019-G
V10470010-G
V10470013-G
Mixer unit with flame monitoring
Flame monitoring
Saftey system
Saftey system
Thermostat
Thermostat

*Notice when biodiesel is used: All fuel leading parts have to be exchanged for those that are tested and proved for biodiesel. The capacity improves by 3-4 % in comparison to normal oil. We could provide a conversion kit for delivered boilers.
