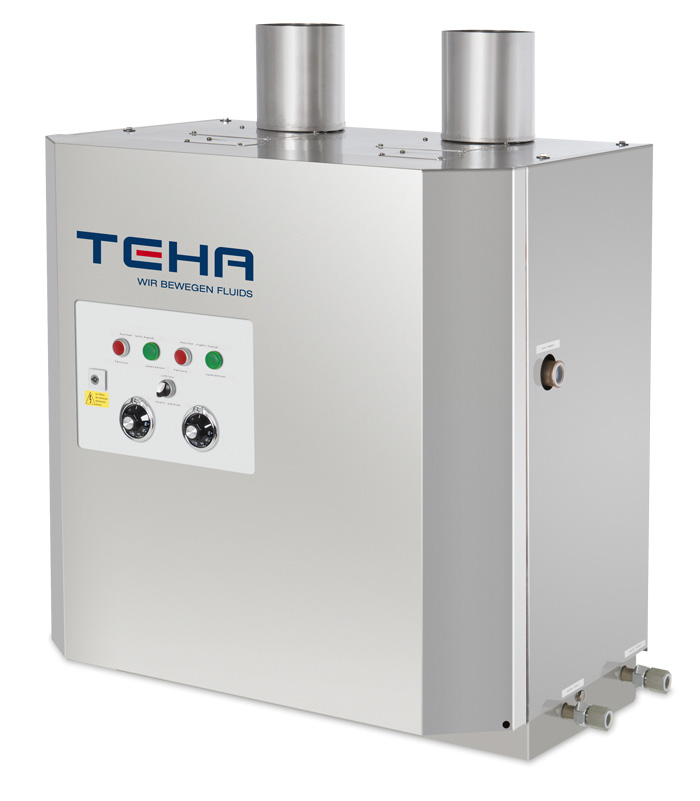

Stationary hotbox HBs2

Teha stationary hot box 2 Description:
Our oil and gas heated stationary hot boxes allow a modular construction of the heating capacity up to your requirements.

Water under high pressure will be heated up by this compact aggregate with integrated burner to the temperature which is adjusted on the thermostat.

These constructions are already piped completely.

Application area:
Especially for stationary use.

Technical Data HBs2:

Operating pressure: 200bar 300bar 500bar
Heating coil: 1/2"
3/8" 3/8"
Water/Filling content: 15,20 Ltr.
8,40 Ltr. 7,40 Ltr.
Weight: 181,0kg 181,0kg 181,0kg
Operating voltage: 230V 50HZ / 110V 50Hz / 12V DC
Power capacity: 160 KW
Operating temperature: max. 95°C
Oil flow (nozzle 1.75): 11,90 - 15,74 kg/h
Consumption of
natural gas (low):
14,00 - 20,00 m³/h
Consumption of
natural gas (high):
10,78 - 14,00 m³/h
Consumption of
butane and propane:

4,00 - 5,40 kg/h

Exhaust gas temperature: max. 180°C
Efficiency: >=91%
Exhaust gas losses: <=9%
Soot value (Bacherach): 0 - 1
Dimensions: 826x615x930 mm


Equipment variants oil:

The basic version is without paneling, without outside air prime, without flue gas collector and without mounting elements (stand or telescope bracket).

Operating pressure: 200bar 300bar 500bar
230V, heating coil steel V10470015
V10470003
V10470006
230V, heating coil AISI 304 V10470018
V10470009
V10470012
12V, heating coil steel V11470015
V11470003
V11470006
12V, heating coil AISI 304 V11470018
V11470009
V11470012
110V equipment 2x M10430002


Equipment variants gas:

The basic version is without paneling, without outside air prime, without flue gas collector and without mounting elements (stand or telescope bracket).

Operating pressure: 200bar 300bar 500bar
230V, heating coil steel V10470015-G
V10470003-G
V10470006-G
230V, heating coil AISI 304 V10470018-G
V10470009-G
V10470012-G
Mixer unit with flame monitoring
Flame monitoring
Safety system
Safety system
Thermostat
Thermostat

*Notice when biodiesel is used: All fuel leading parts have to be exchanged for those that are tested and proved for biodiesel. The capacity improves by 3-4 % in comparison to normal oil. We could provide a conversion kit for delivered boilers.
