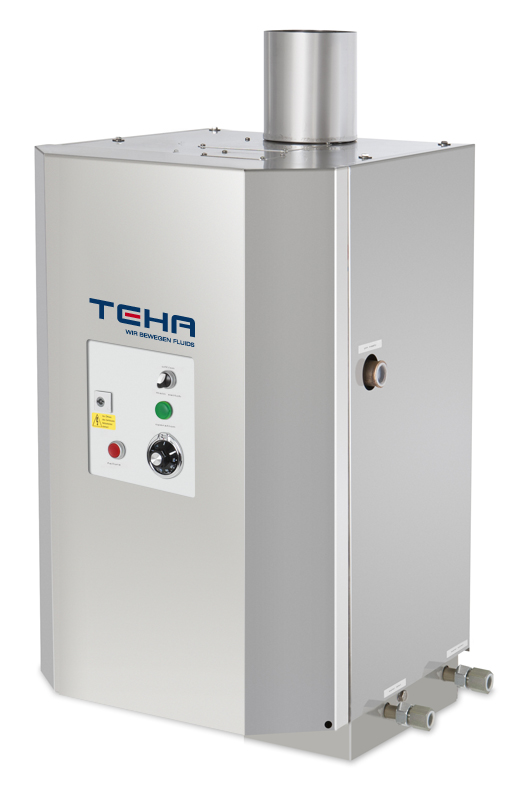

Stationary hotbox HBs1

Stationary hotbox HBs1 Description:
Our oil and gas heated stationary hot boxes allow a modular construction of the heating capacity up to your requirements.

Water under high pressure will be heated up by this compact aggregate with integrated burner to the temperature which is adjusted on the thermostat.

These constructions are already piped completely.

Application areas:
Especially for stationary use.

Technical Data HBs1:

Operating pressure: 200bar 300bar 500bar
Heating coil: 1/2"
3/8" 3/8"
Water/Filling content: 7,60 Ltr.
4,17 Ltr. 3,66 Ltr.
Weight: 92,5kg 92,5kg 92,5kg
Operating voltage: 230V 50HZ / 110V 50Hz / 12V DC
Power capacity: 80 KW
Operating temperature: max. 95°C
Oil flow (nozzle 1.75): 5,95 - 7,87 kg/h
Consumption of
natural gas (low):
7,00 - 10,00 m³/h
Consumption of
natural gas (high):
5,39 - 7,00 m³/h
Consumption of
butane and propane:
2,00 - 2,70 kg/h
Exhaust gas temperature: max. 180°C
Efficiency: >=91%
Exhaust gas losses: <=9%
Soot value (Bacherach): 0 - 1
Dimensions: 535x615x930 mm


Equipment variants oil:

The basic version is without paneling, without outside air prime, without flue gas collector and without mounting elements (stand or telescope bracket).

Operating pressure: 200bar 300bar 500bar
230V, heating coil steel V10470014
V10470002
V10470005
230V, heating coil AISI 304 V10470017
V10470008
V10470011
12V, heating coil steel V11470014
V11470002
V11470005
12V, heating coil AISI 304 V11470017
V11470008
V11470011
110V equipment M10430002


Equipment variants gas:

The basic version is without paneling, without outside air prime, without flue gas collector and without mounting elements (stand or telescope bracket).

Operating pressure: 200bar 300bar 500bar
230V, heating coil steel V10470014-G
V10470002-G
V10470005-G
230V, heating coil AISI 304 V10470017-G
V10470008-G
V10470011-G
Mixer unit with flame monitoring
Flame monitoring
Safety system
Safety system
Thermostat
Thermostat

*Notice when biodiesel is used: All fuel leading parts have to be exchanged for those that are tested and proved for biodiesel. The capacity improves by 3-4 % in comparison to normal oil. We could provide a conversion kit for delivered boilers.
