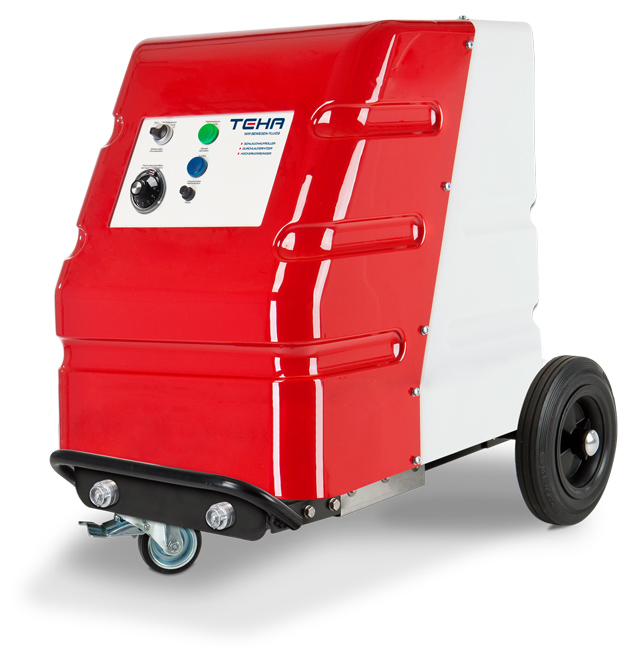

Mobile hotbox type HBm750
Technical data HBm 750:
Operating pressure: | 300bar | 200bar | 500bar |
Heating coil: | 3/8" |
1/2" | 3/8" |
Water/Filling content: | 2,92 Ltr. |
6,17 Ltr. | 2,56 Ltr. |
Weight: | 85kg | 85kg | 85kg |
Operating voltage: | 230V 50HZ / 110V 50/60Hz |
||
Power capacity: | 60 KW | ||
Operating temperature: | max. 95°C |
||
Consumption of oil: | 5,8 l/h | ||
Exhaust gas temperature: | max. 180°C | ||
Effeciency: | >=91% | ||
Exhaust gas losses: | <=9% | ||
Soot value (Bacherach): | 0 - 1 | ||
Dimensions: | 760x450x747 mm |
Standard Version:
300 bar steel heating coil, electric equipment 230 V/50 Hz, temperature adjustable by thermostat, galvanized steel pipes, saftey equipment including flow switch, brass safety valve, galvanized steel screws and fittings.
Operating pressure: | 300bar | 200bar | 500bar |
230V, heating coil steel | V10460002 |
M1040009-5 |
M10400027-5 |
230V, heating coil AISI 304 | M10400019-5 |
M10400022-5 |
M10400019-6 |
110V equipment | M10430002 |
![]() Plastic cover |
![]() Solid rubber wheels |
![]() Thermostat |
