Angle bracket type KHDp and KHDr

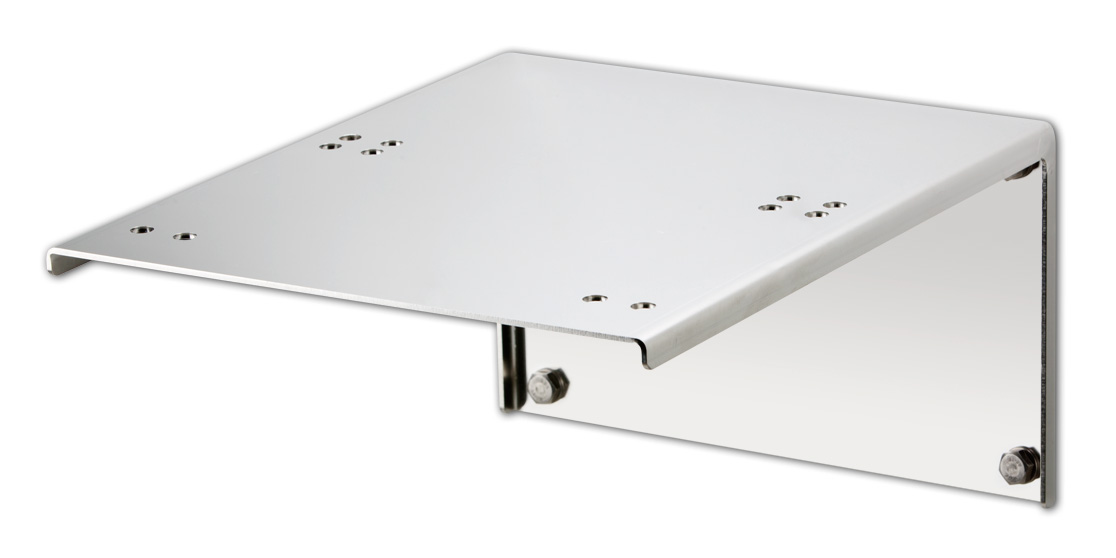

Angled bracket KHDr Description:
The angle bracket KHD permits the mounting right angled (KHDr) or parallel (KHDp) to the wall. In connection with a wall lead through guide the hose can be channelled to the outside.

Material:
postbulletsStainless steel (application in wet areas)


Technical data:

Type angled bracket
KHDx 14/20e KHDx 30/40/1e KHDx 40/2e
Item number
parallel to the wall:
V1070000201 V10700030
V1070003001
Item number right angled to the wall:
V1070000202 V1070000203
V10700002
Suitable for the following hose reel types:
ST 14
ST 20
ST 30
ST 40/10u12/2
ST 40/19/1
ST 40/19/2
Weight:
2,3kg
4,7kg
6,0kg
Dimensions:
see downloads on the left


Accessories:

Description Item number
Screw and dowel set for the mounting of the hose to the bracket and the bracket to the wall (4 wood screws, 4 dowels, 4 hexagon bolts and nuts with washers, stainless steel): V10700041
Screw and dowel set for the mounting of the hose to the bracket
(4 hexagon bolts and nuts with washers, stainless steel):
V1070004102
Hose reel ST40/12/2e at KHDp30/40/1e
Angle bracket type KHDp
Screws
Set of screws
ST40/12/2e at KHDr30/40/1e
Angle bracket type KHDr
