Boiler BR1000G 2.0 gas heated

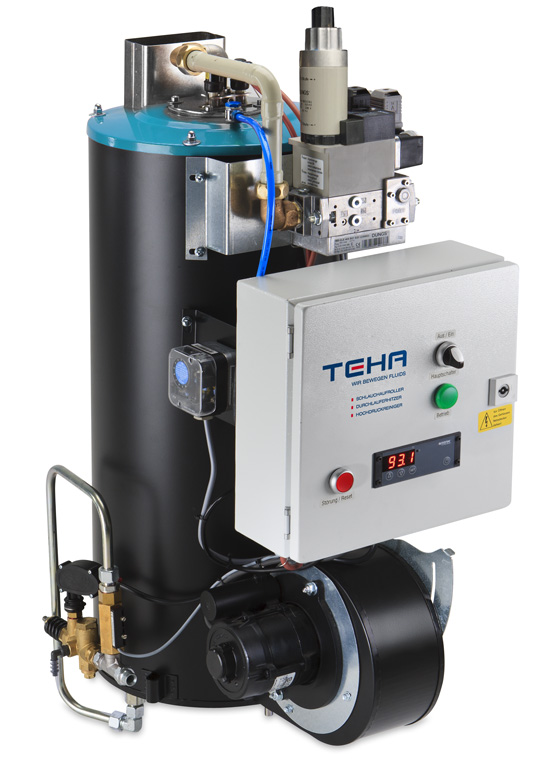

BR1000G 2.0 mit Sicherheitsausstattung Description:
The new gas burner, made by Theodor Henrichs GmbH can easily be controlled by a digital thermostat and a two- step gas multi block. We achieved a better start up with liquid gas. Our pressure flow heater BR1000G 2.0 is the right choice for you if constant temperatures are needed.

postbulletsHeating capacity of approx. 70KW low exhaust gas temperature
postbulletsExhaust gas emissions are observed despite high efficiency
postbulletsPermanent temperatures by intelligent control
postbulletsImproved start up, especially with liquid gas

Technical Data BR1000G2.0:

Operating pressure: 200bar 300bar 500bar
Heating coil: 1/2"
3/8" 3/8"
Water/Filling content: 7,60 Ltr.
4,17 Ltr. 3,66 Ltr.
Weight: 71,9kg 77,0kg 83,0kg
Operating voltage: 230V 50HZ / 110V 50Hz
Power capacity: 45 - 70 KW
Operating temperature: max. 95°C
Consumption of
natural gas (low):
7,00 - 10,00 m³/h
Consumption of
natural gas (high):
5,39 - 7,00 m³/h
Consumption of
butane and propane:
2,00 - 2,70 kg/h
Exhaust gas temperature: max. 210°C
Efficiency: >=91%
Exhaust gas losses: <=9%
Soot value (Bacherach): 0 - 1
Dimensions: 320x550x850 mm

With safety control:

Equipped with: switch box with content according to the circuit diagram, adjustable thermostat, exhaust temperature limiter, flow switch, safety valve, flame control, 3m electric cable. The basic equipment corresponds to the units shown on the previous sides. Additionally the gas boilers are equipped with gas specific safety parts. Surcharge MP10440001.

Operating pressure: 200bar 300bar 500bar
230V, heating coil steel on request
on request on request
230V, heating coil AISI 304 on request on request on request
110 equipment M10430002
Detail Gasmultiblock
2 step gas multi block
Safety equipment
Digital thermostat
