Mounting possibilities

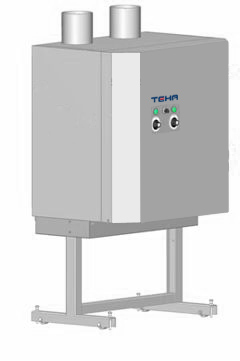

Floor mounting
Two stands allow the mounting on the floor. Rolls (6) underneath the bracket stands simplifiy the movement. The height can be adjusted by screws (5) to a complete stop.
HotBox Fussteil
HBs floor mounted

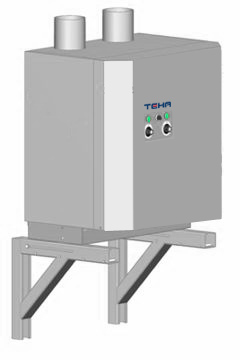

Wall mounting
A telescope bracket allows a direct mounting to the wall. Guide rolls (3) simplifiy the movement (1) of the arms (2). A locking device screw (4) fixes the telescope arm. Easy maintainance is possible without removing the chimney. Wall bracket hotboxWandkonsole HotBox
Hotbox Wandmonage


Item number:

Type of mounting bracket
HBs1 HBs2 and
Teha 6000
HBs3
Floor bracket (stands)
B10470004 B10470008
B10470012
Wall telescope bracket B10470005 B10470005
B10470005
