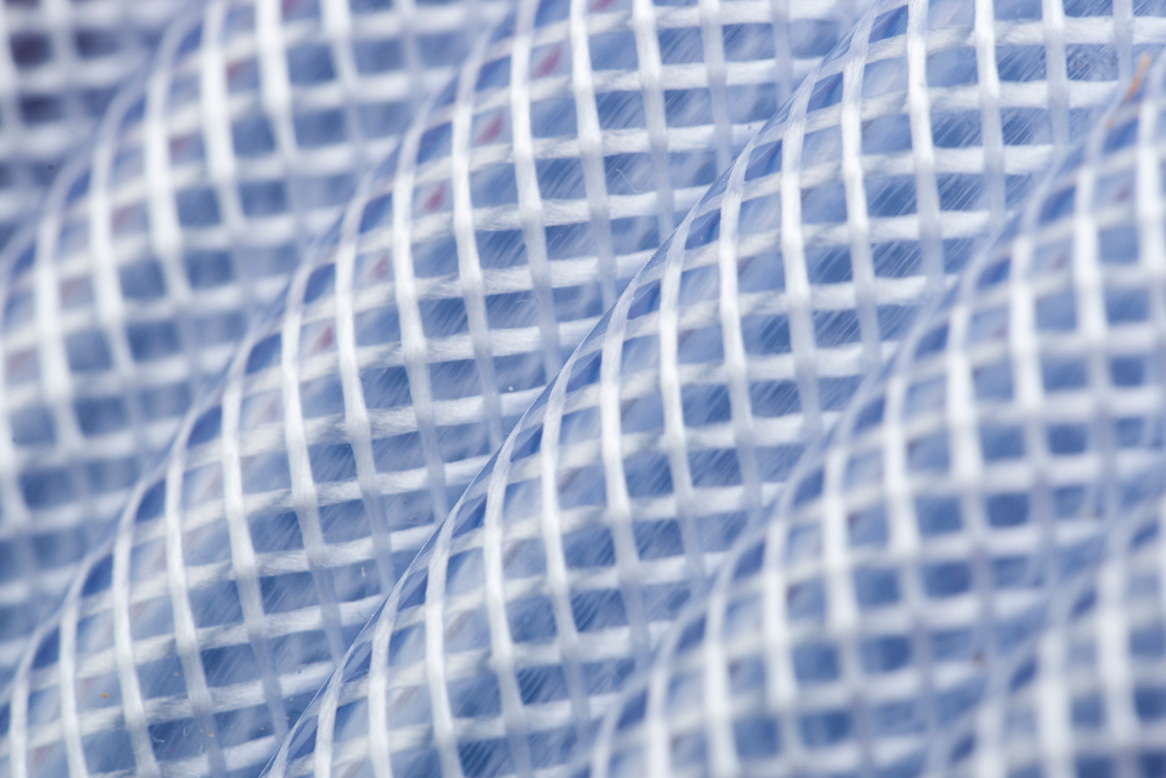

Reinforced hose, transparent

Transparent reinforced hose Description:
PVC hose with layer for various applications like wash bays, working rooms, production halls, swimming pools /baths and foodstuff (RAL-E71). Core and shell cadmium-free, good chemical resistance. Checked by TÜV.

Technical data:

Type DN10 (3/8") DN13 (1/2") DN19 (3/4")
DN25 (1")
Outer diameter:
16mm
20mm
27mm
34mm
Operating pressure:
10bars
8bars 7bars 6bars
Inlet:
3/8" AGR
1/2" AGR
3/4" AGR
1" AGR
Outlet:
3/8" AGR
1/2" AGR
3/4" AGR
1" AGR
Temperature:
-15 up to +65 °C
Core: PVC
Surface: PVC
Suitable substances: Alkaline fluids, water, food and air
Length:
Upon request
